Vertex Bevel affecting Edge bevel

[Joe Morgan]

Hey,

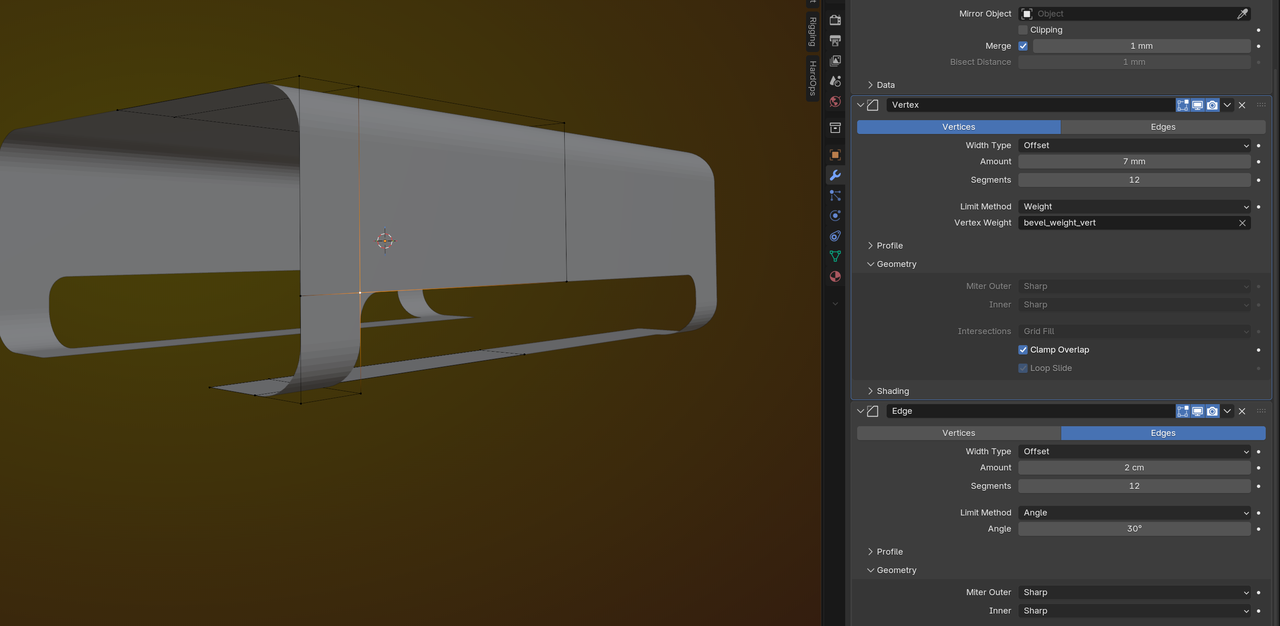

When I move my vertex bevel modifier above the edge bevel one, the bevels of the 4 out edges shrink. Even tho the bevel weight of the edges and vertex affected are set to 0.

Image Link

Blend file

Thanks for the support

[Martin Bergwerf]

Hi @Stoic ,

From the image, I’d say it’s the Clamp Overlap kicking in.

Now let me look at the file…

[Martin Bergwerf]

Yes,

It’s the Clamping, but you can’t just disable it. What you can do, is make the (Amount of the) Vertex Bevel smaller:

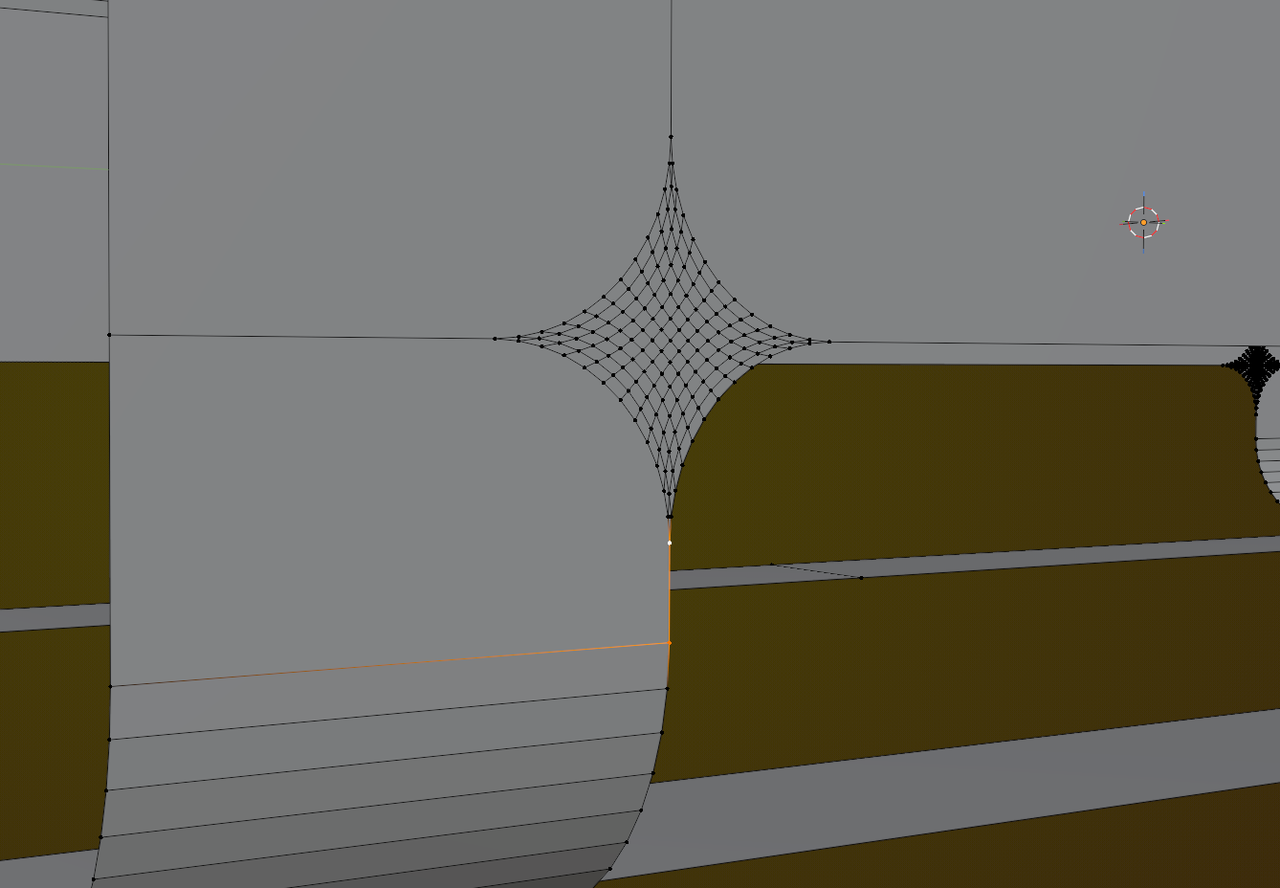

That way this (Active, white) Vertex from the Vertex Bevel, doesn’t prevent the Vertex from the Edge Bevel from ‘going’ up further:

[Omar Domenech]

In case you are wondering, there are multiple ways of going about it, but since it’s a beginner tutorial, JL goes the easiest route. So don’t worry if you feel is a bit convoluted in the beginning, you’ll get used to modeling bit by bit.

[Joe Morgan]

Thanks Martin and Omar, problem solved.
