Revolver – Pinching Geometry

[robdomenech]

Greetings! I am working through the “Revolver” modeling and, for the life of me, I can’t figure out what is causing the pinching I’m seeing when I apply the Subdivision Surface modifier. Hopefully the pictures that demonstrate my issue upload correctly, so this makes sense. Any assistance here would be great because I’m stuck.

[Martin Bergwerf]

Hi @robdomenech ,

That might be, because you have ‘double Vertices’, or inconsistent Normals. Let’s fix those: Select everything (with A), then press M > Merge > By Distance, immediately (with everything still selected!) followed by SHIFT+N.

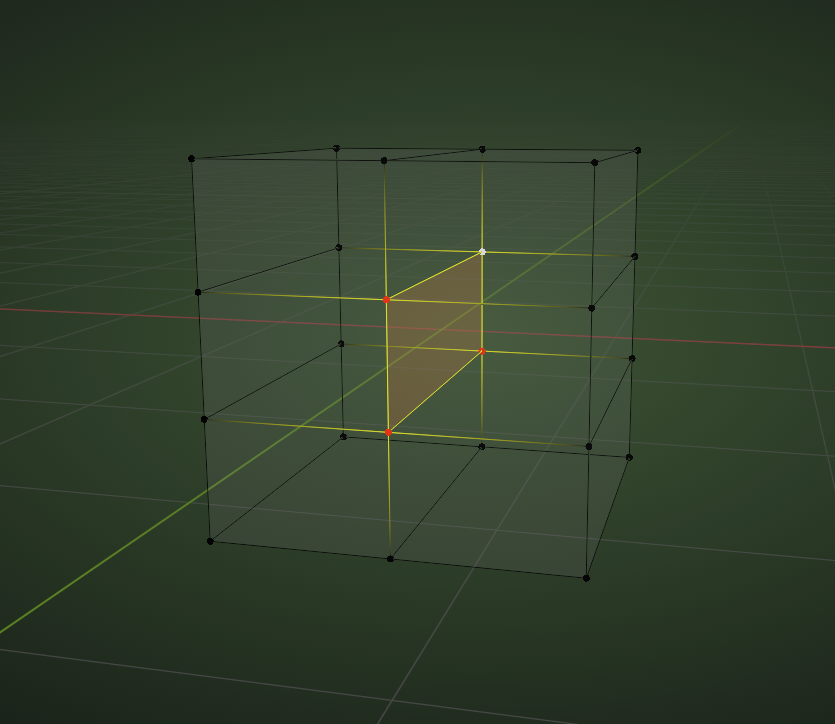

Most likely that’ll fix it, but if not, there might be some inner geometry (Faces, Edges that aren’t supposed to be there…something like this:

,

but I don’t think that is the case here…

[Adrian Bellworthy]

Looks like flipped normals to me!
SHIFT+N should do the trick.

[Omar Domenech]

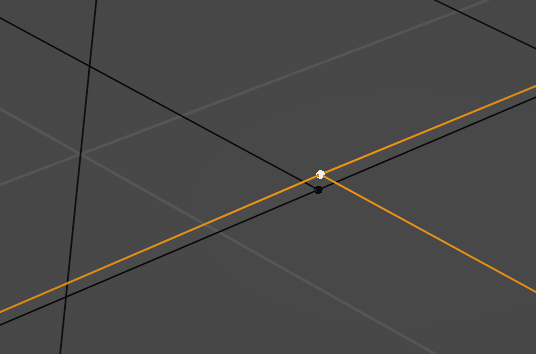

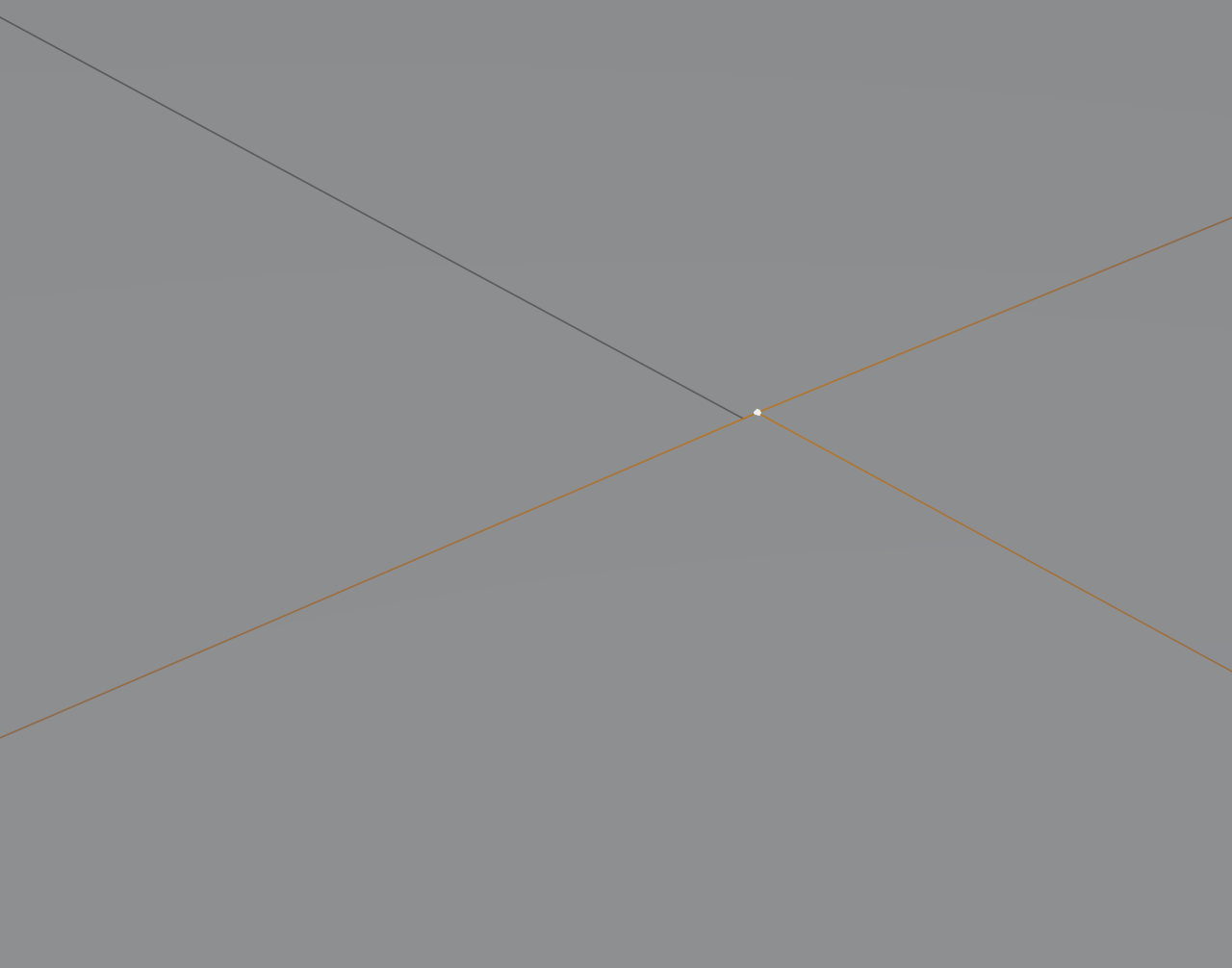

Also sometimes you try to merge by distance, so you select everything with A, then M and merge by distance but nothing happens. Try checking that vertices are for sure on top of one another:

This happens to me sometimes, that I try to merge and the distance is not enough because the verts are not occupying the same space. Try checking for that as well, just in case.

[robdomenech]

It was doubled over vertices! Selecting all and merging by distance did the trick! Thank you all so much for the guidance.
