Problem with sharpening corners in my model

[Denis Voloshyn]

Hello, community!

I have a problem I’ve been trying to deal with in the past two days, so maybe someone could help me and explain what I’m missing.

Here’s the deal:

I have a corner in my subdivided model that I want to be sharp.

Here it is – http://joxi.ru/EA4RRW1co1Ejym (simple), http://joxi.ru/5mdOO4oC3WzPWr (subdivided).

If I’m adding supporting edges to sharpen my corner http://joxi.ru/12MOOE4ClPz6wr it starts looking like this, and I don’t like it at all – http://joxi.ru/MAjyyQJhjlQwL2 , here’s the problem http://joxi.ru/52aaabyCEozN12

So, I’m trying to move the edges to solve this weird looking edge like that – http://joxi.ru/p27nnK1cK4zp3m , but in this way I’m not solving problem completely http://joxi.ru/zANnnJ4cvP9OBA  and now there is a new problem – geometry of that part looks weird and too complex to me. And if I add one more loop around, that I need – http://joxi.ru/4Ak775QfopqeKA , it will start to look even worse http://joxi.ru/KAgxxe0cEWdkJr .

After two days of struggling I finished with subdivided result that I like http://joxi.ru/LmGLLJ4iwP0p72 but geometry of that decision makes me cry – http://joxi.ru/4Ak775Qfopq5gA .

So, any help please? Q_Q

[spikeyxxx]

@primarychaos Hi Denis, I would really like to help, but it’s rather hard with all these links; I lose track of what belongs where;)

I would say, that http://joxi.ru/12MOOE4ClPz6wr should do the trick. If it doesn’t work when sudivided, check for double vertices ( select all in Edit Mode and ALT-M > Merge by Distance) and Normals (SHIFT-N > Recalculate Normals).

[Denis Voloshyn]

Hi and thank you for advice, but I already checked double verts and normals 🙁 I can try to upload model if you want to look

[spikeyxxx]

That would be great! Just upload it to any cloud service and paste a link here.

[Denis Voloshyn]

https://drive.google.com/file/d/1LErrnJRmT6EQudYr26HtBzOMSy84gy-G/view?usp=sharing

[spikeyxxx]

I’d suggest something like this:

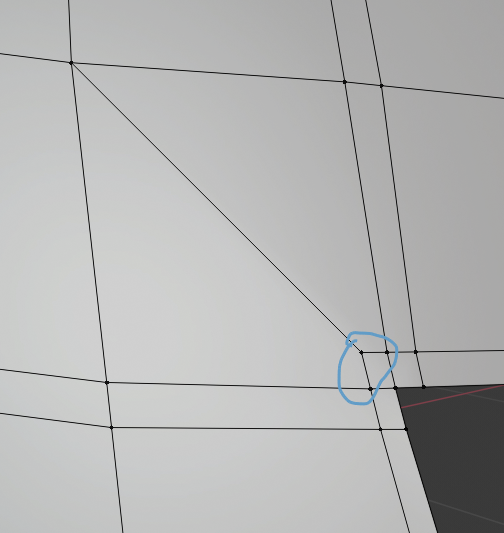

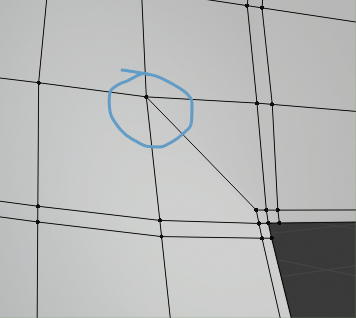

So you’ve got an edge loop going all the way around the ‘hole’ and it got rid of the unnecessary pole:

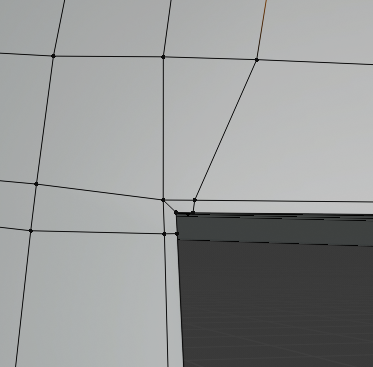

Simply merge those three vertices and then dissolve the edge to make a quad out of the two triangles.

[Denis Voloshyn]

Looks clean for me, thanks!

[spikeyxxx]

You should also definitely watch this:

https://cgmasters.net/free-tutorials/advanced-subsurf-modeling-techniques-to-avoid-pinching/

[Denis Voloshyn]

That’s awesome! Thanks a lot!
