problem with bevel tool

[smashhack512]

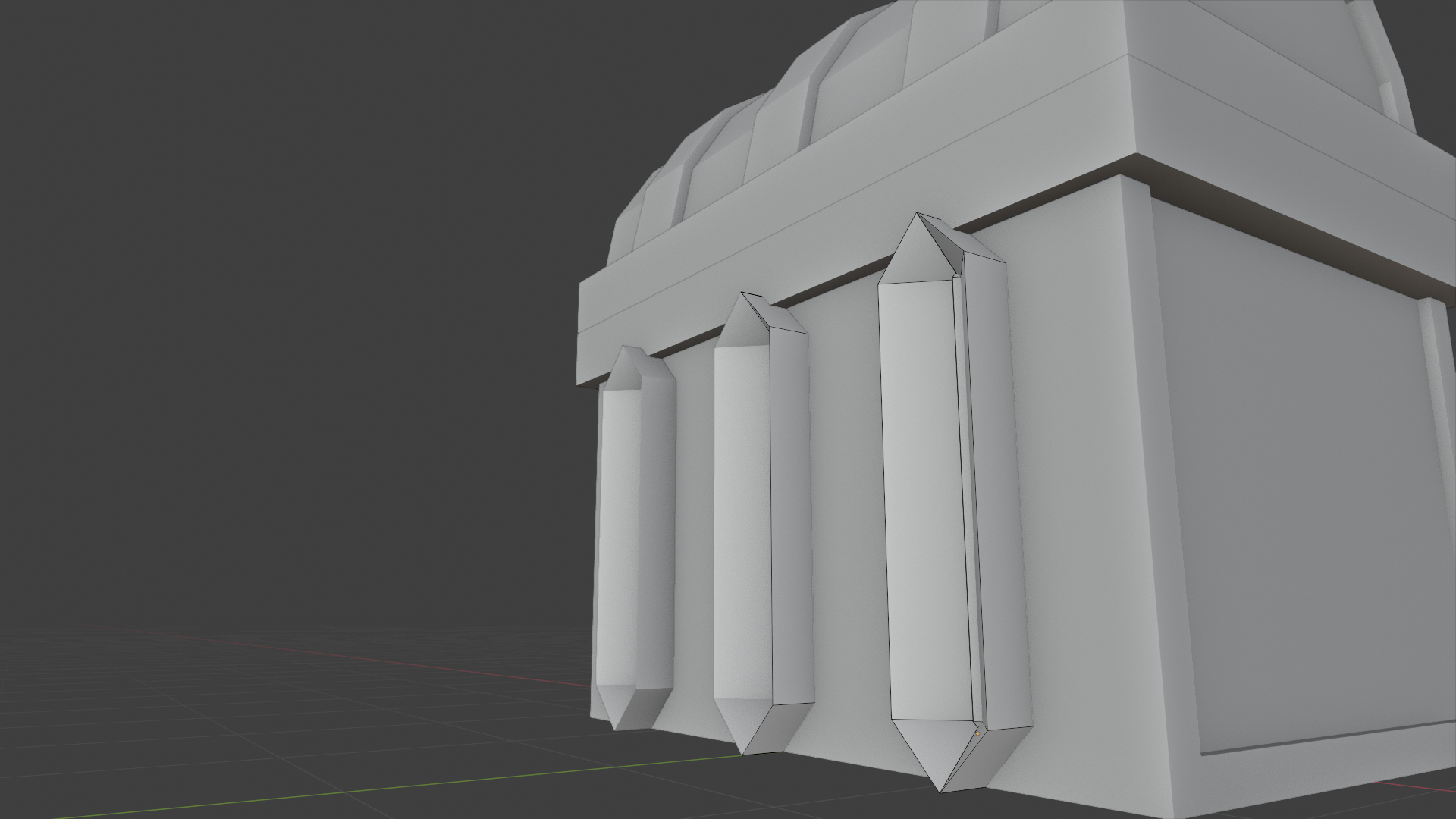

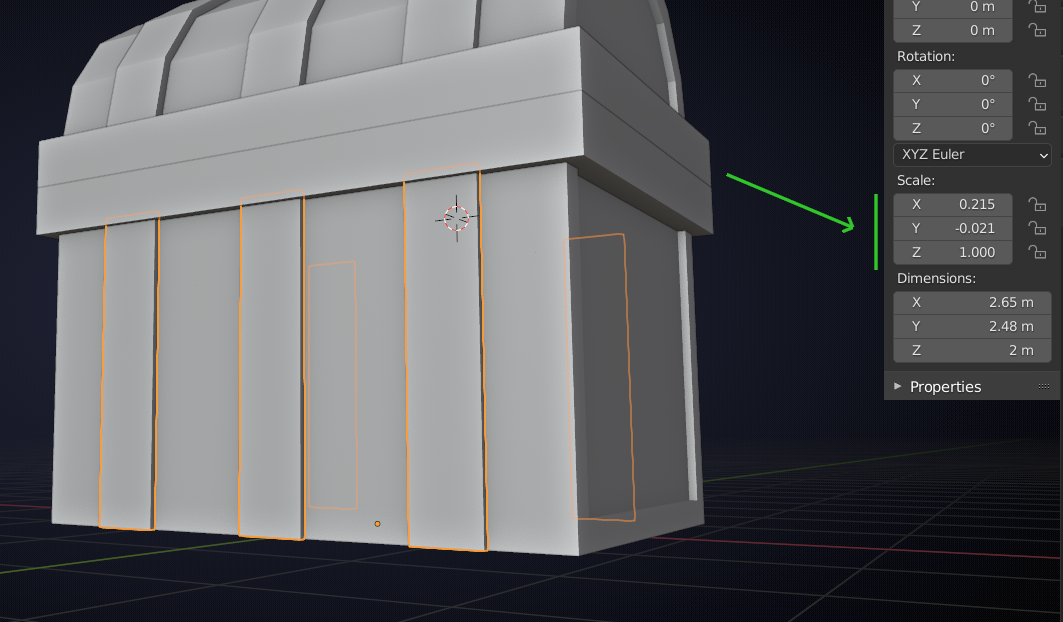

every time i use the bevel tool this happens and i don’t know why? i scaled it and the

face orientation flip. can someone help me out?

[Kent Trammell]

My guess is you need to apply your scale transforms before using the bevel tool. But if you post a download link to your .blend file I’ll be happy to take a closer look. The best way to do this is by uploading your file to Dropbox, Google Drive, Mega, or equivalent file hosting service then copy + pasting the share link here.

[smashhack512]

okay here a link to the file

https://drive.google.com/file/d/1omrvqe4fegyyWcXd4IeCZE91-w0JE2Hk/view?usp=sharing

[spikeyxxx]

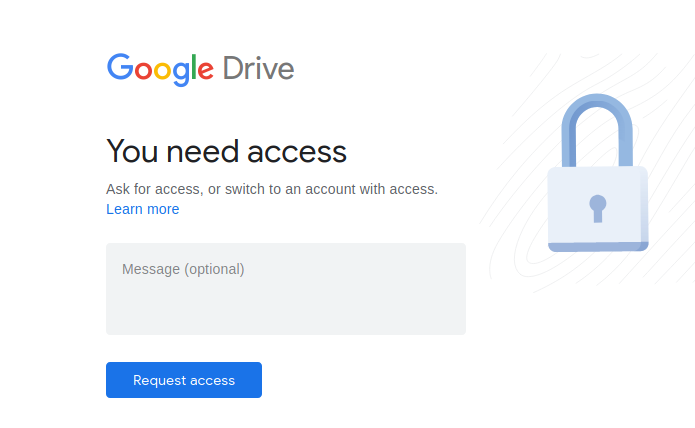

Google changed its defaults; you need to tell it that everybody with the link can ‘see’ the file.

[smashhack512]

okay i think i fixed it

https://drive.google.com/file/d/1omrvqe4fegyyWcXd4IeCZE91-w0JE2Hk/view?usp=sharing

[spikeyxxx]

Working now 😉

The main problem is that you are not subtle enough and your bevel is ‘overshooting’.

But first let’s fix the scale:

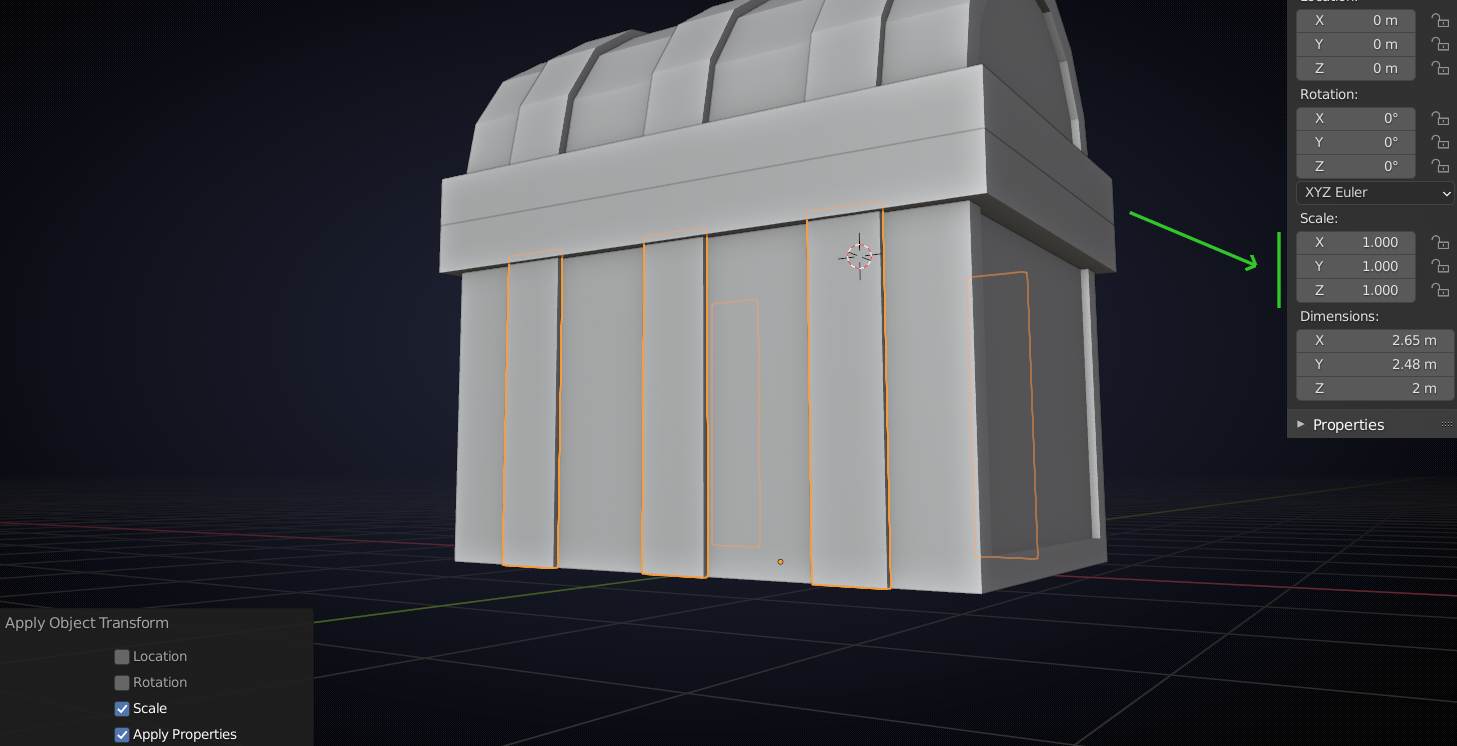

In Object Mode: CTRL+A > Apply Scale:

Now, in Edit Mode, you can bevel ‘uniformly’. Be very careful:

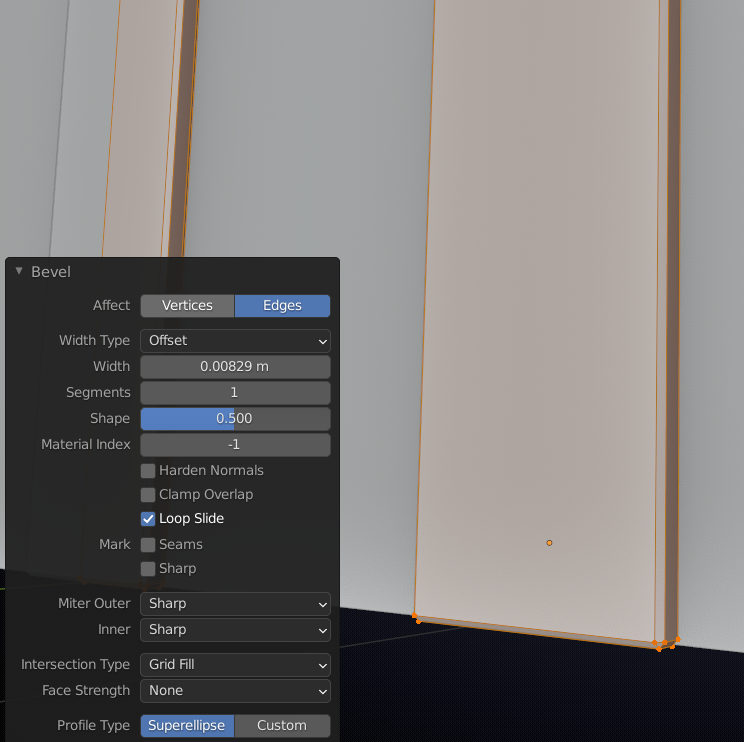

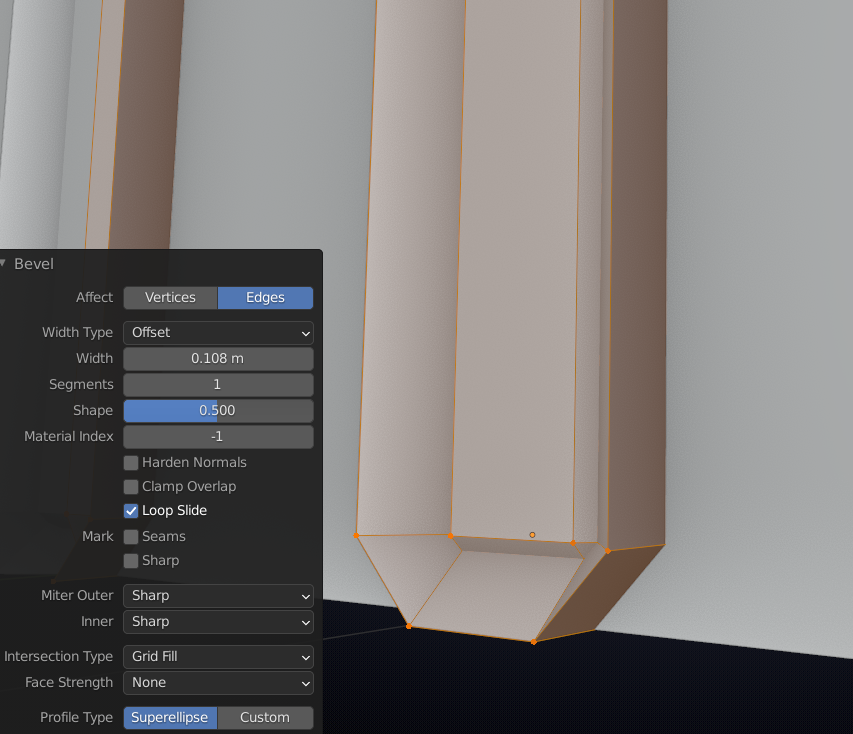

If you go too far with the width, you get this:

Which looks like your issue…

[smashhack512]

THANK YOU!!!

I’ve been going back and forth through the video figure out what i did wrong.

Thank you again.

[Kent Trammell]

Couldn’t have said it better myself – @smashhack512 you’re in good hands with @spikeyxxx

[Shawn Blanch]

Another great explanation Spikey’d into the cookie. That was excellent @spikeyxxx
