Packing islands on 4x / Stretching colors

[Nathi Tappan]

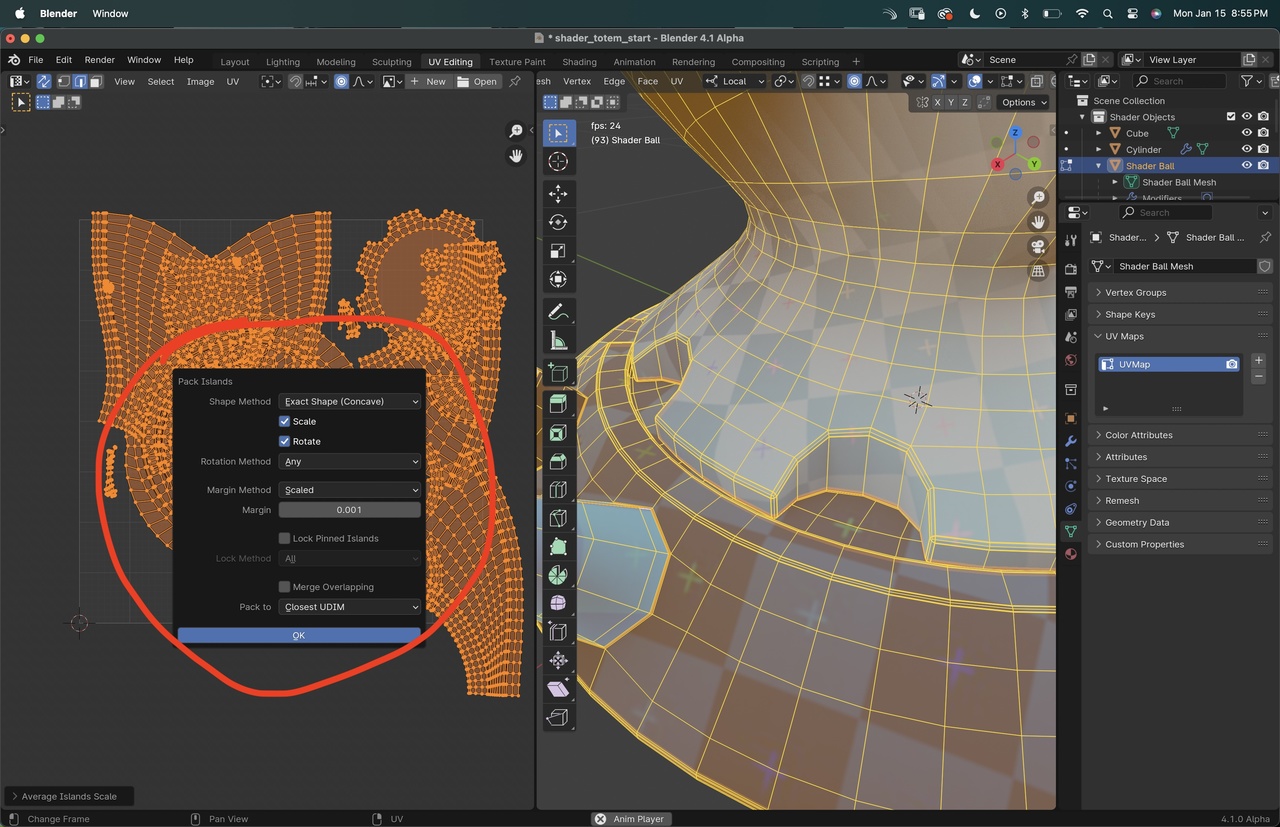

I apologize if this gets explained later in the series, I’ve only watched through Melvin’s unwrapping. I know there are add-ons that are recommended and such, but it seems we have a lot more options now (I’m using Blender 4.1) when we hit “Pack Islands” from the UV Menu.

Do these actually make a good difference now, or should we still stick to using the add-on?

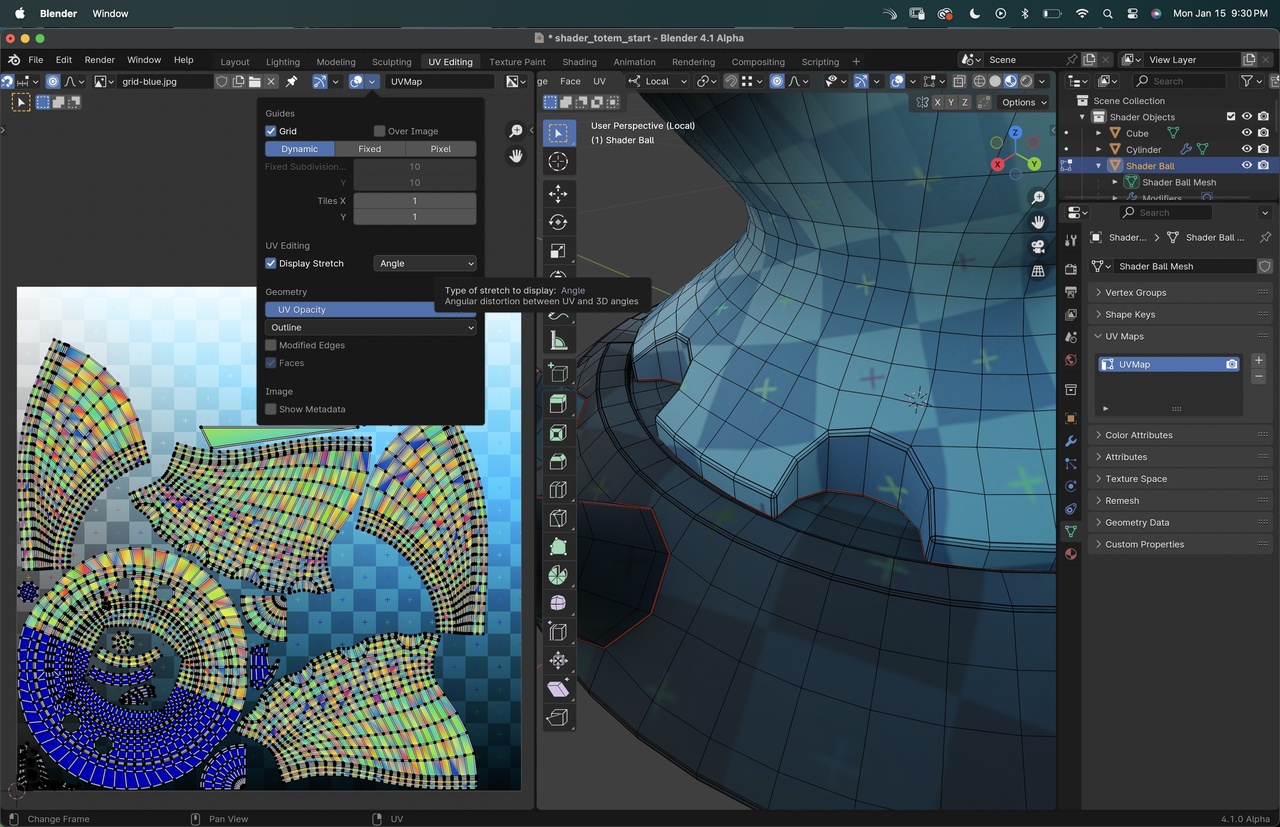

Second question: the colors for the angle stretching overlays are not as intuitive as it shows on the video. Is there a setting I am missing?

Thanks!

[Adrian Bellworthy]

Hey @nathitappan,
Good questions,

There are lots of good add-ons to assist with UV unwrapping. Blender’s UV unwrapping abilities (add-on free) has improved a lot over the last few versions.
Therefore it is not necessary to use any add-on, especially when learning. Understanding the fundamentals and being competent in add-on free Blender is essential in my opinion, or you’re at the mercy of third party developers of add-ons and their reliability to update the add-ons with every new version of Blender.

The stretching display type of angle is not really much use on a model such as this. You will mostly likely always want to use area instead.
If you notice at ~3:49 in the lesson, Jonathan switches the display stretch to area. I’m not sure why area isn’t the default.

[Omar Domenech]

Don’t worry, most of the time in Blender, when they introduce a bunch of menus, 99% of the time you still end up using them very basic, you just hit ok in the default set and you’re good to go. In time you learn that with 20% of the tools you do 90% of the work and then you don’t worry about the overwhelming number of settings.

[Nathi Tappan]

Got it! Thank you guys, as always!

[Nathi Tappan]

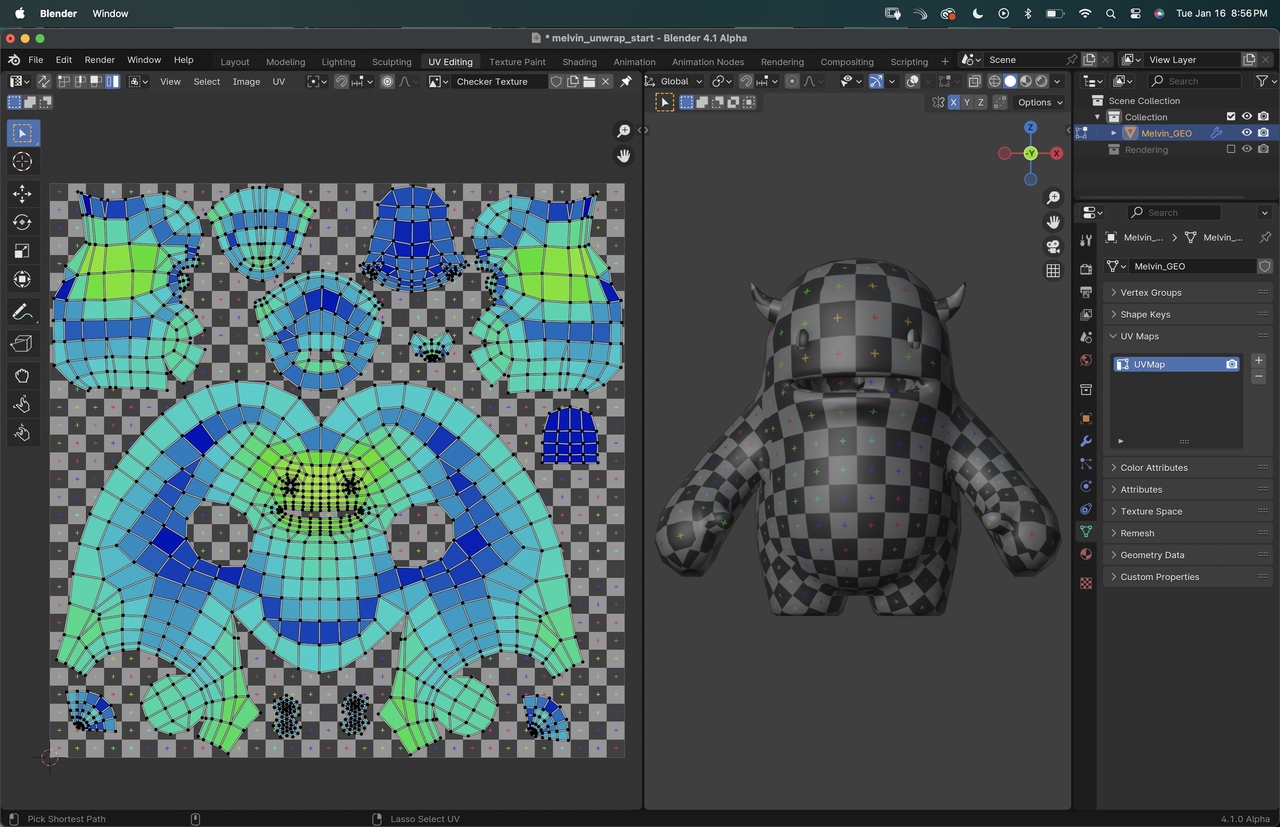

Alright, one more question popped up on these overlays… when using the area stretching on both the shader ball and Melvin’s unwrapping I never fully got the same amount of blue areas as in the video. To make sure it wasn’t because I wasn’t following click by click I tried in a couple instances to follow Jonathan exactly and still…

Do I see it correctly that there are more shades of stretching now? I feel like more greens and yellows? Am I ok to aim for mostly green and blue?

[Martin Bergwerf]

Hi Nathalia,

I checked the unwrapped Melin in 3.3 and 4.1 and there is absolutely no difference in the Stretching Colors between those two versions.

I think your unwrap doesn’t look too bad as it is.Maybe try to get the face a bit more towards blue.

You should also look at the model in the 3D Viewport and how the Texture looks there. That is the most important thing.

[Omar Domenech]

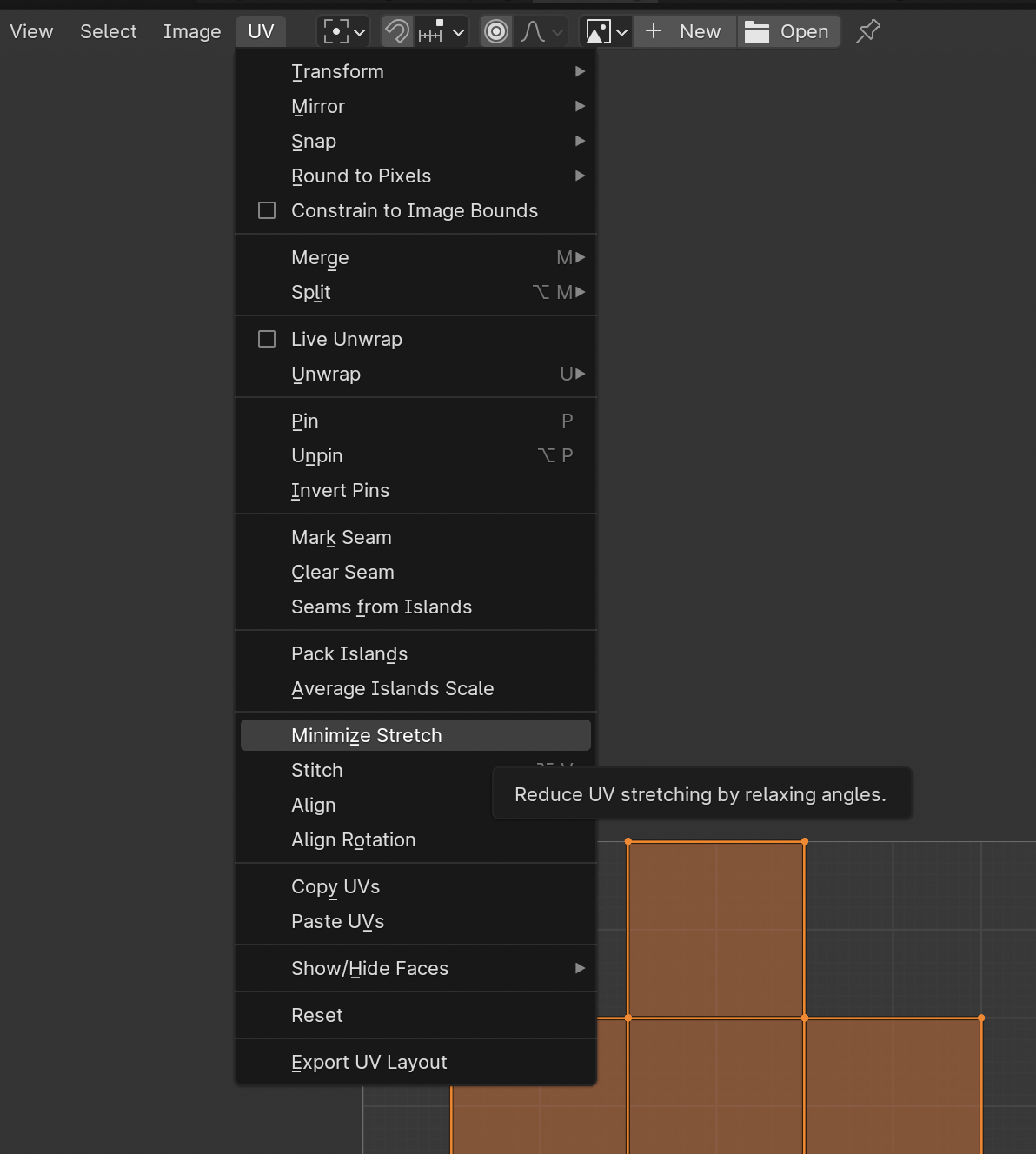

There is an option to minimize stretch, see if that helps:

[Nathi Tappan]

It does help a bit, thank you Omar! But I think mainly is that I need to develop more “touch” to the pinching and inflating tools with this…

Great idea to do the testing Martin! That leaves no doubt. Thank you!
