First problem after trying to bake second group of low and high models to make a normal map

[scottslaymaker]

I have been able to troubleshoot everything to this point I am currently stumped. On the baking the normal’s video, at around 26:19, after I add the diffuse modifier and scale it to cover all the high poly details, whenever I add the subdivide modifier, the lower part of the door where the inset is has some issues going on that I cant fix. Ive tried removing creases, adding creases, making sure all vertices are connected, etc.. but it keeps turning out messed up

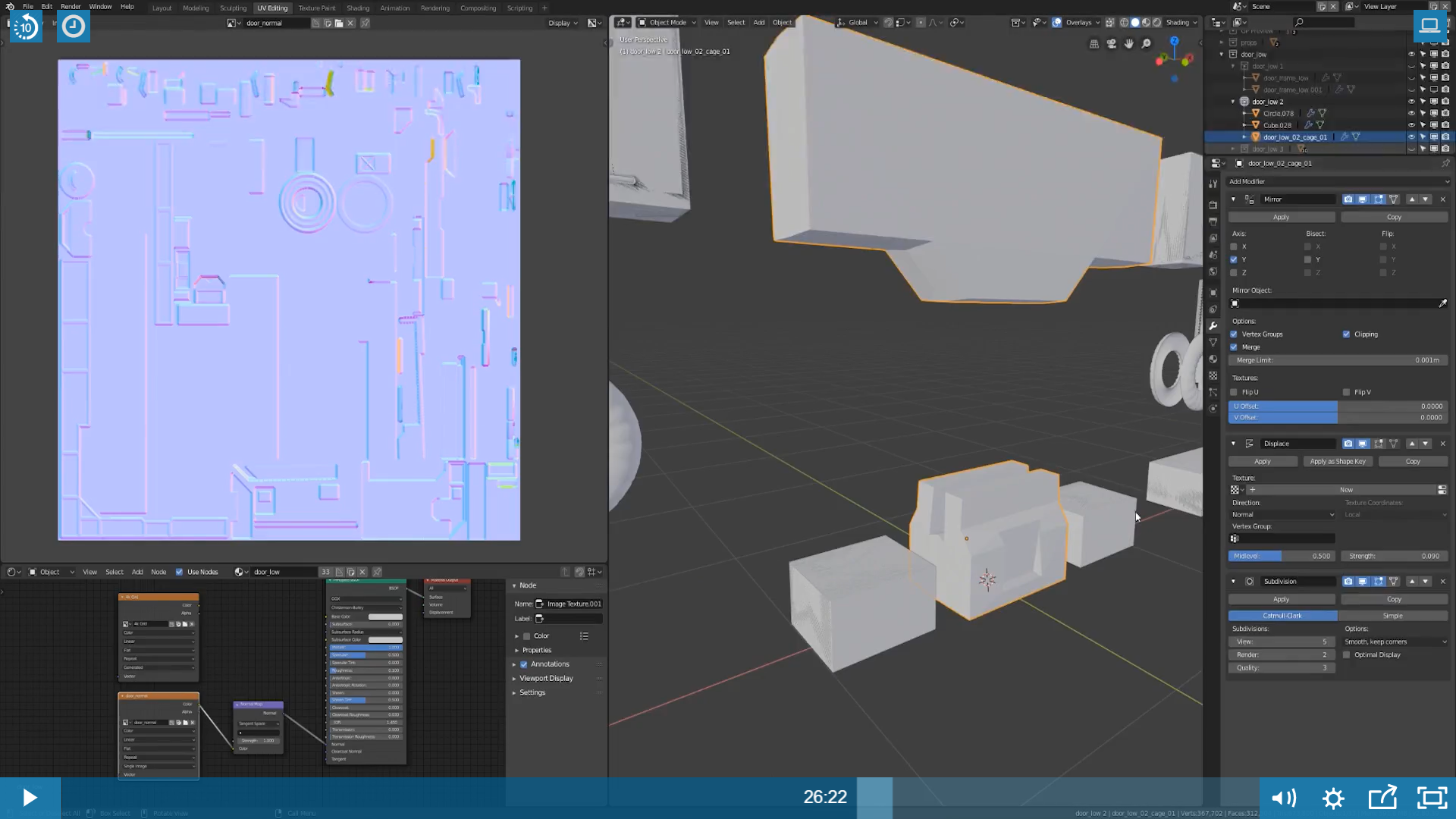

How it should look from the tutorial

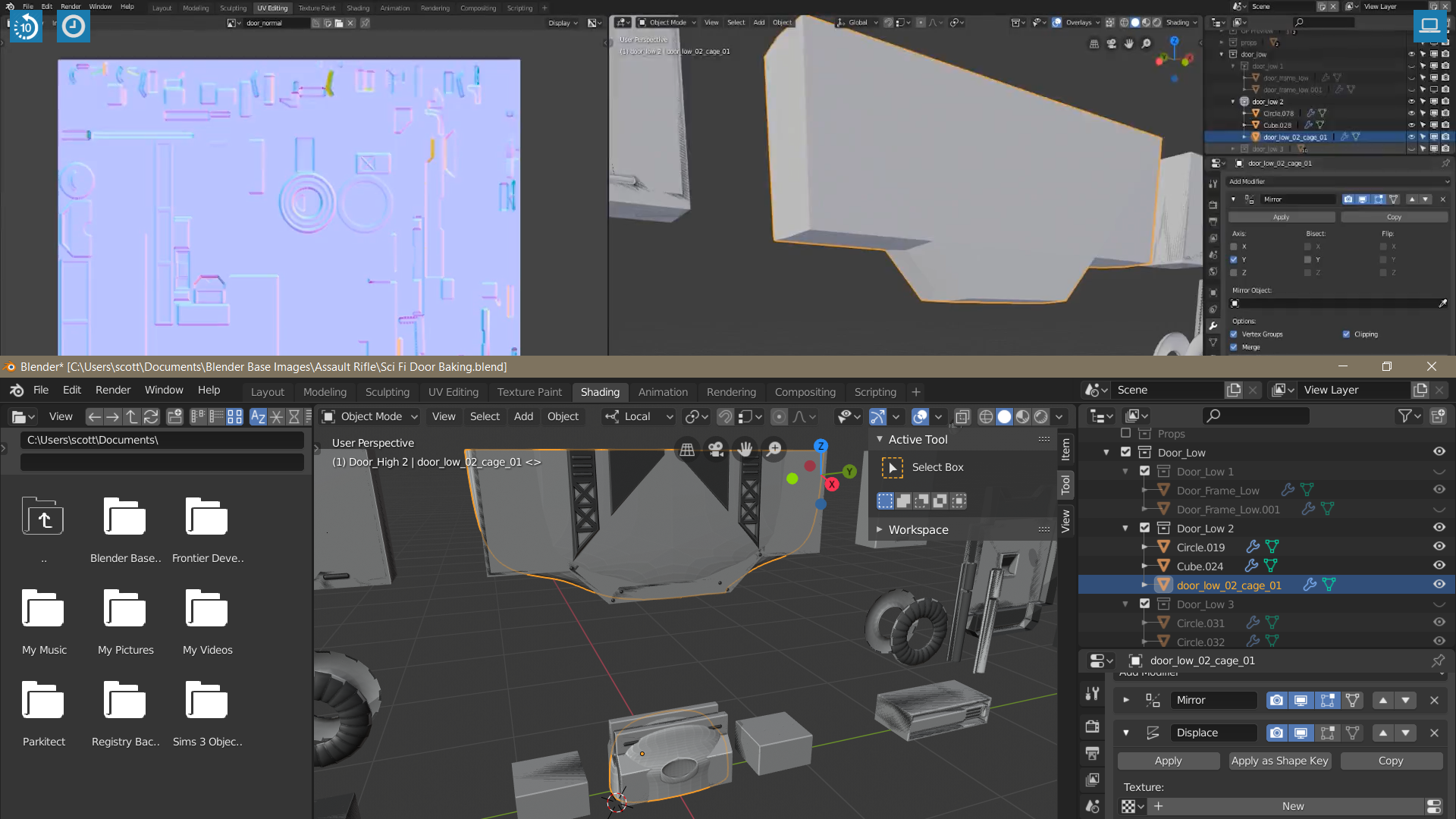

The result I get when I add subsurf modifier

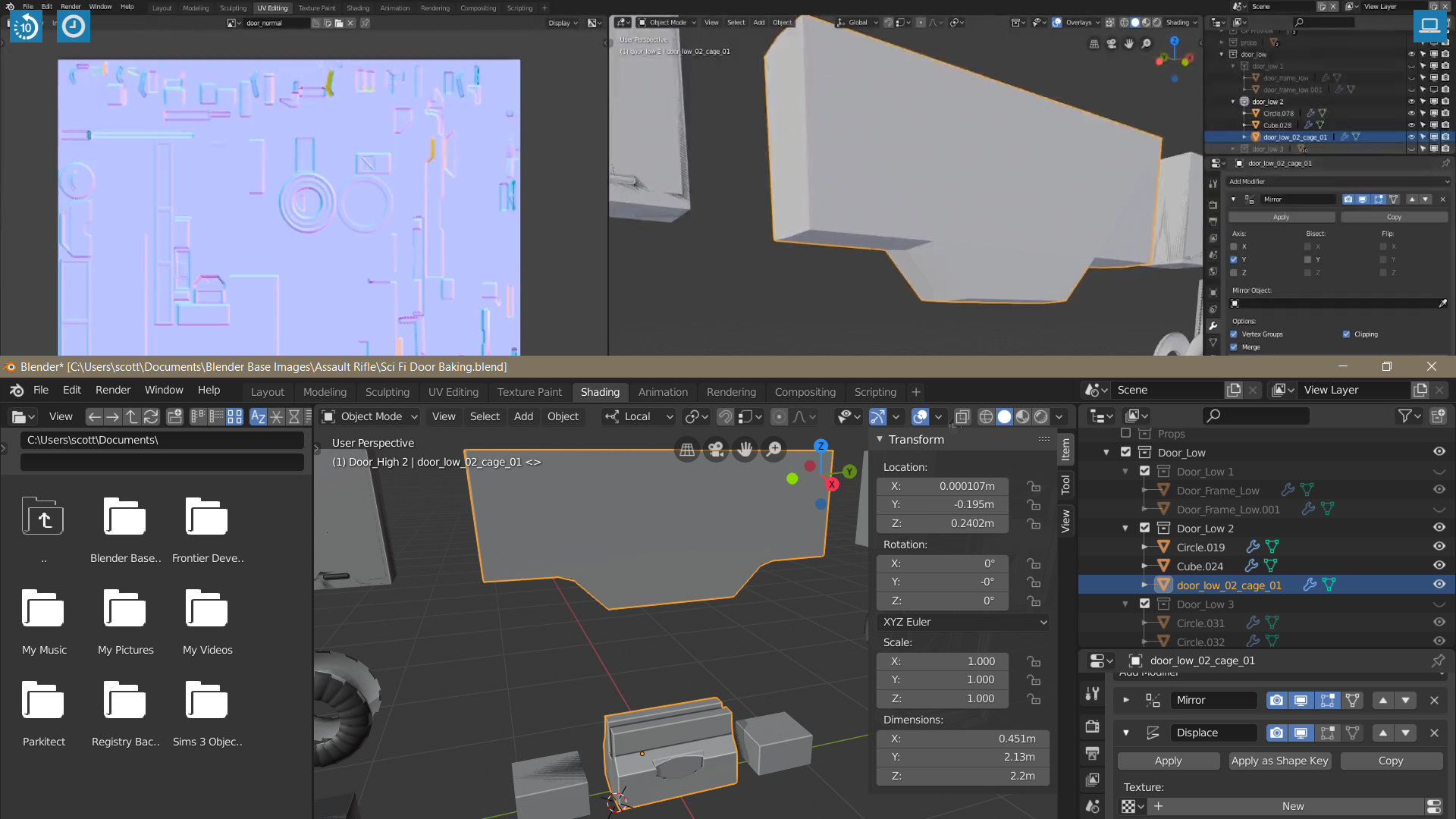

The result I get when I change crease to 1 in edit mode

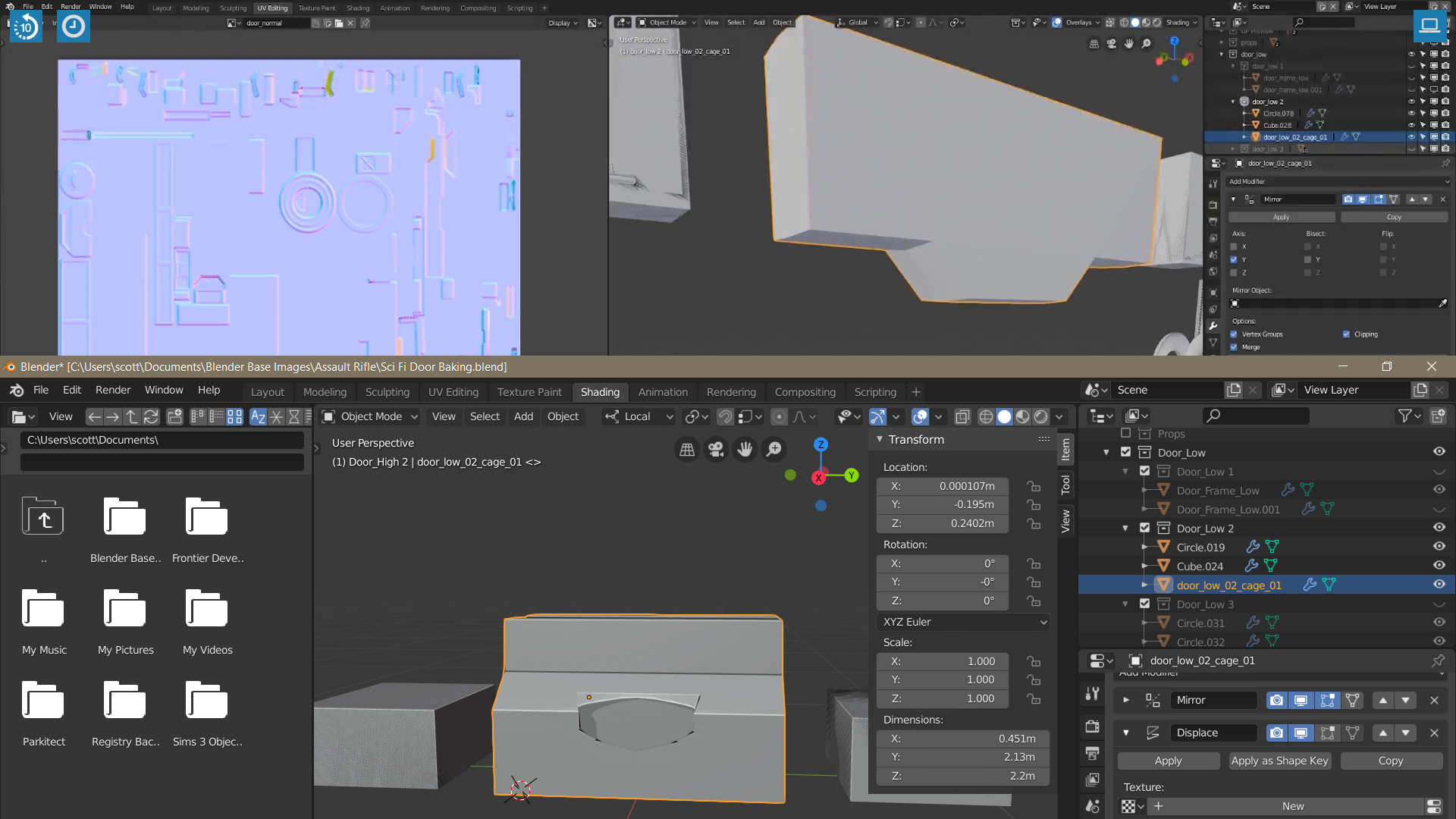

Inset looks messed up, what do I do?

[Jonathan Lampel]

Hey @scottslaymaker ! I’m not sure why a crease of 1 on all edges for that bottom piece would give you that result. If you’ve creased all those edges (including all the non-sharp edges too), then I’d be happy to take a look at the file and see what’s up if you upload it to pasteall.org, Dropbox, or Google Drive. My guess though is that the edges connecting the inset to the perimeter of the shape are not creased, or perhaps that shape is an ngon, in which case use J to connect the inset to the outer edges and crease the result.

[scottslaymaker]

Thanks a lot John, that worked, I had 2 faces that were NGons. That was a quick response, thanks again for being awesome and providing all the great tutorials !!
