Blender Nugget: Using Array and Curve Modifier without the Curve deformations (shrinking/fattening)

[Shawn Blanch]

Hopefully this posting helps on any other soul looking to do something similar.

So, I was on a seemingly small journey: A spring (or repeating/merged object) that arrays and follows a curve without deforming terribly:

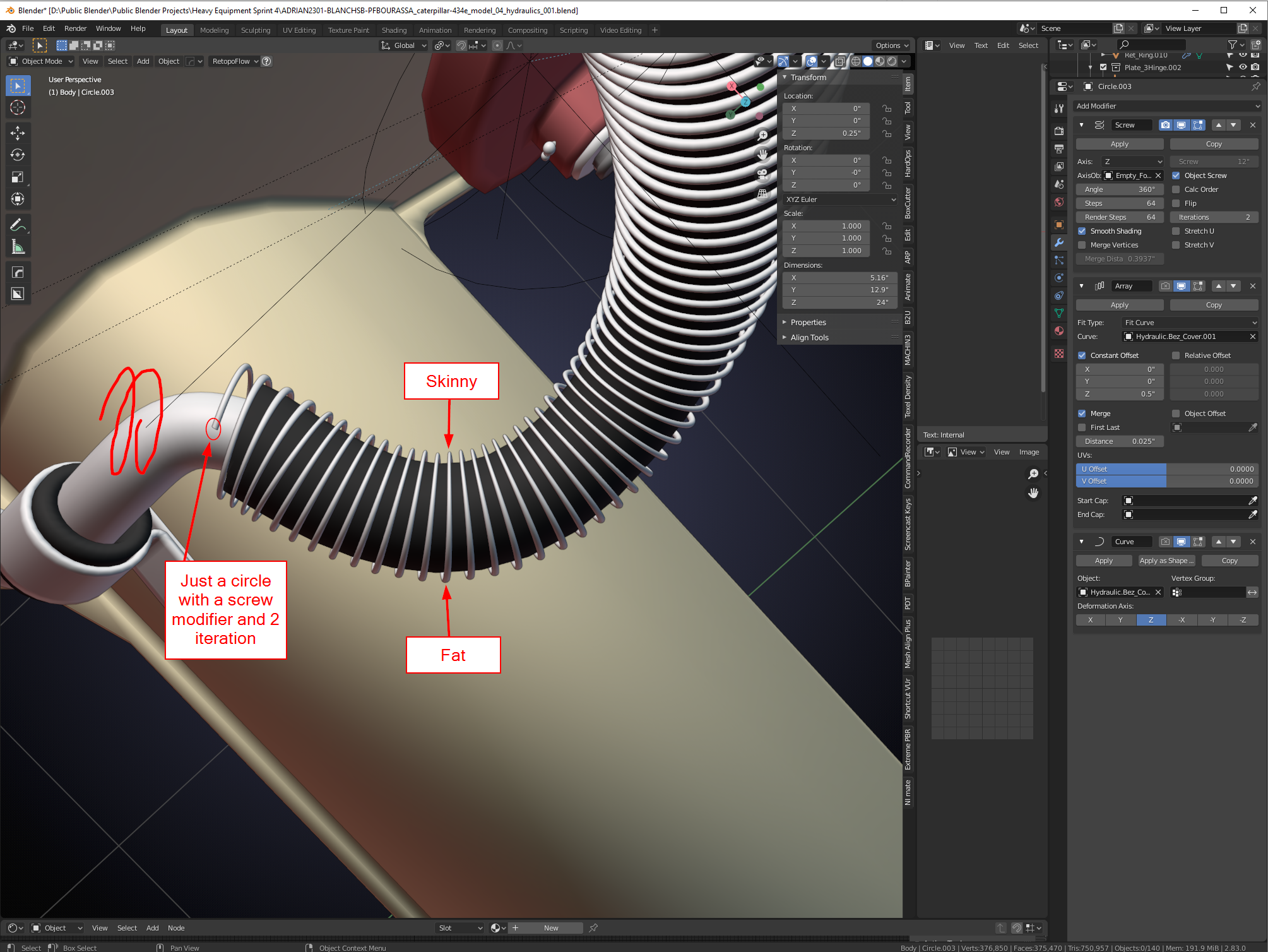

I just used a screw modifier then arrayed it and fit it to a curve, but it deforms on sharp curve edges as shown above.

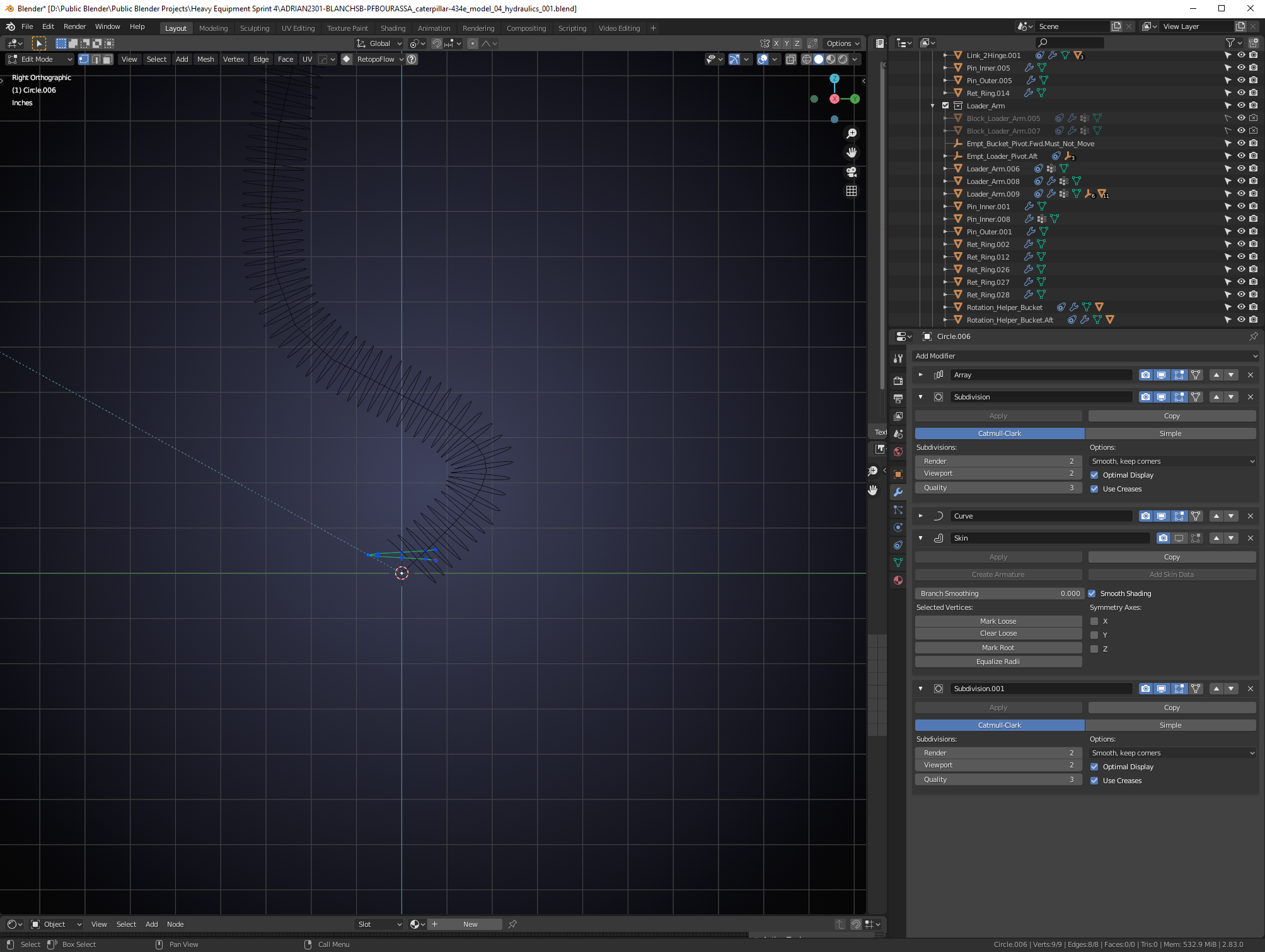

This is what the object looked like in edit mode.

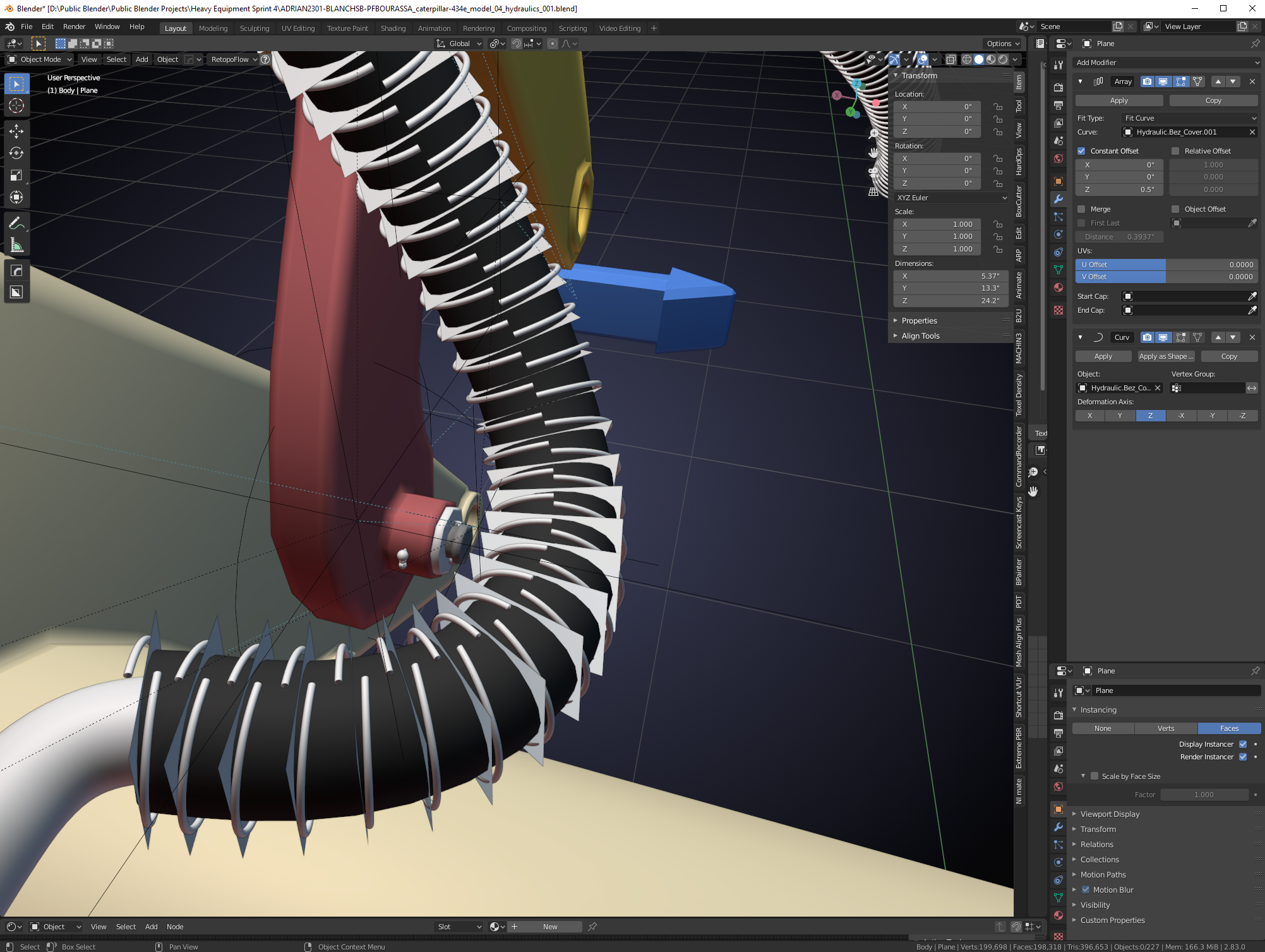

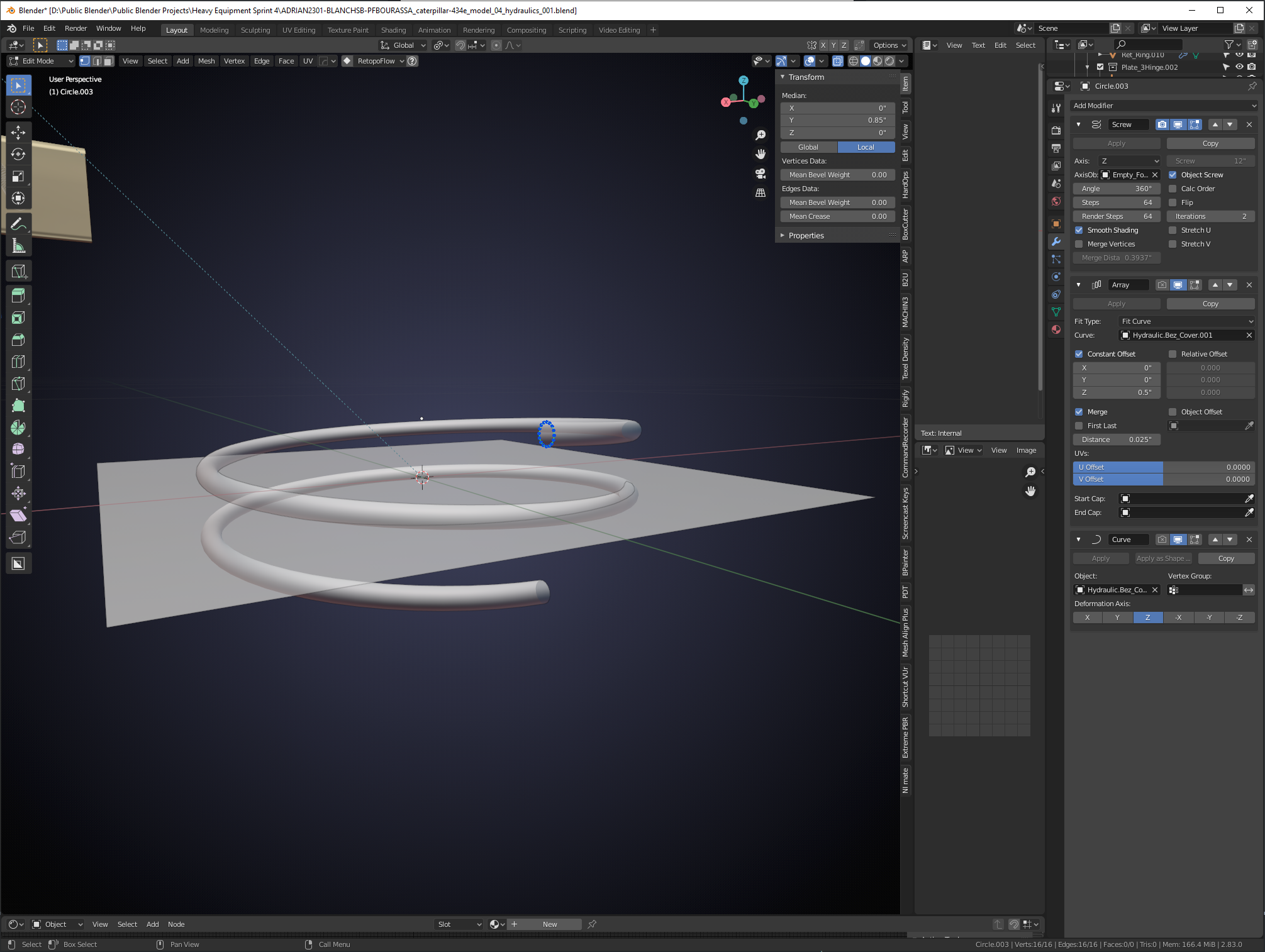

I tried reducing the screw iteration to 1 on the circle and then I parented it to a plane, and then made the plane to take the array and curve deformations and used instancing like is shown in this Youtube video:

But, even using this method I could not seem to figure out how to make the screw piece mate up to itself. I was sure the solution was fairly simple. But this didn’t look like it…..

Until I came across this forum posting which got me 99% of the way there:

https://blender.stackexchange.com/questions/2146/how-to-create-a-bent-spring

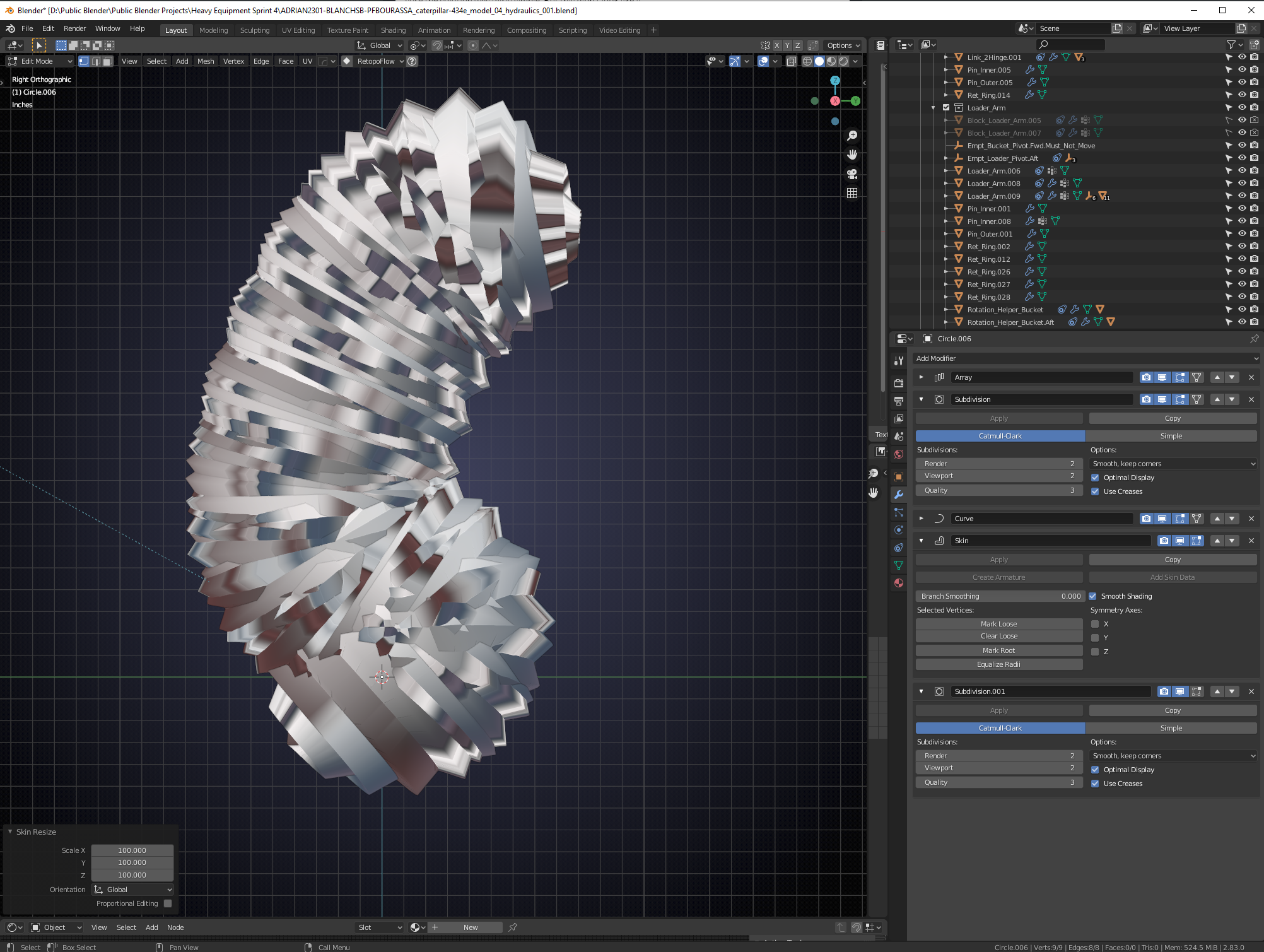

Everything was working great until I added the skin modifier on a very small spring and it looked like this:

I kept scratching my head until I realized I had seen this problem before. The SCALE was way too large.

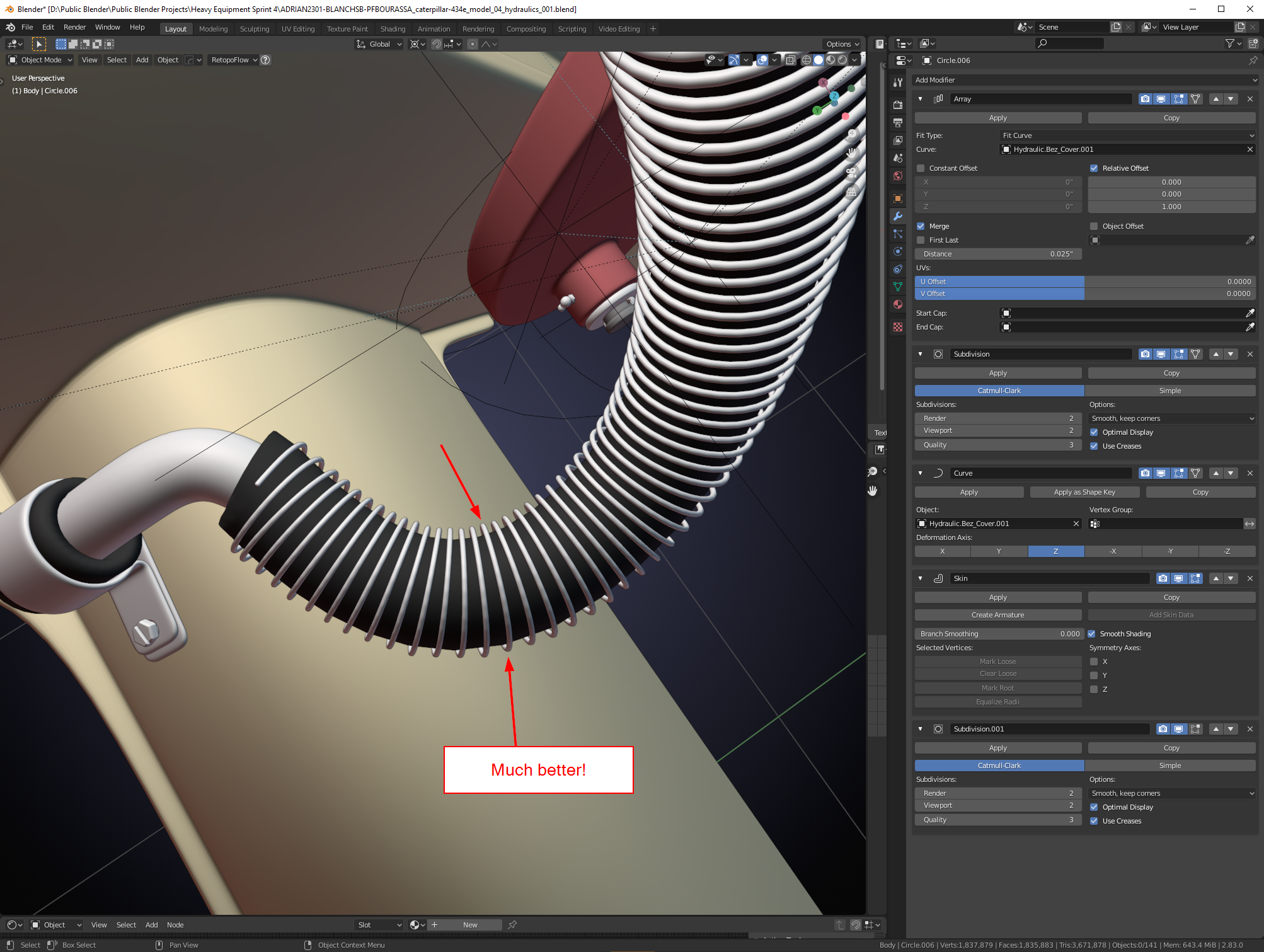

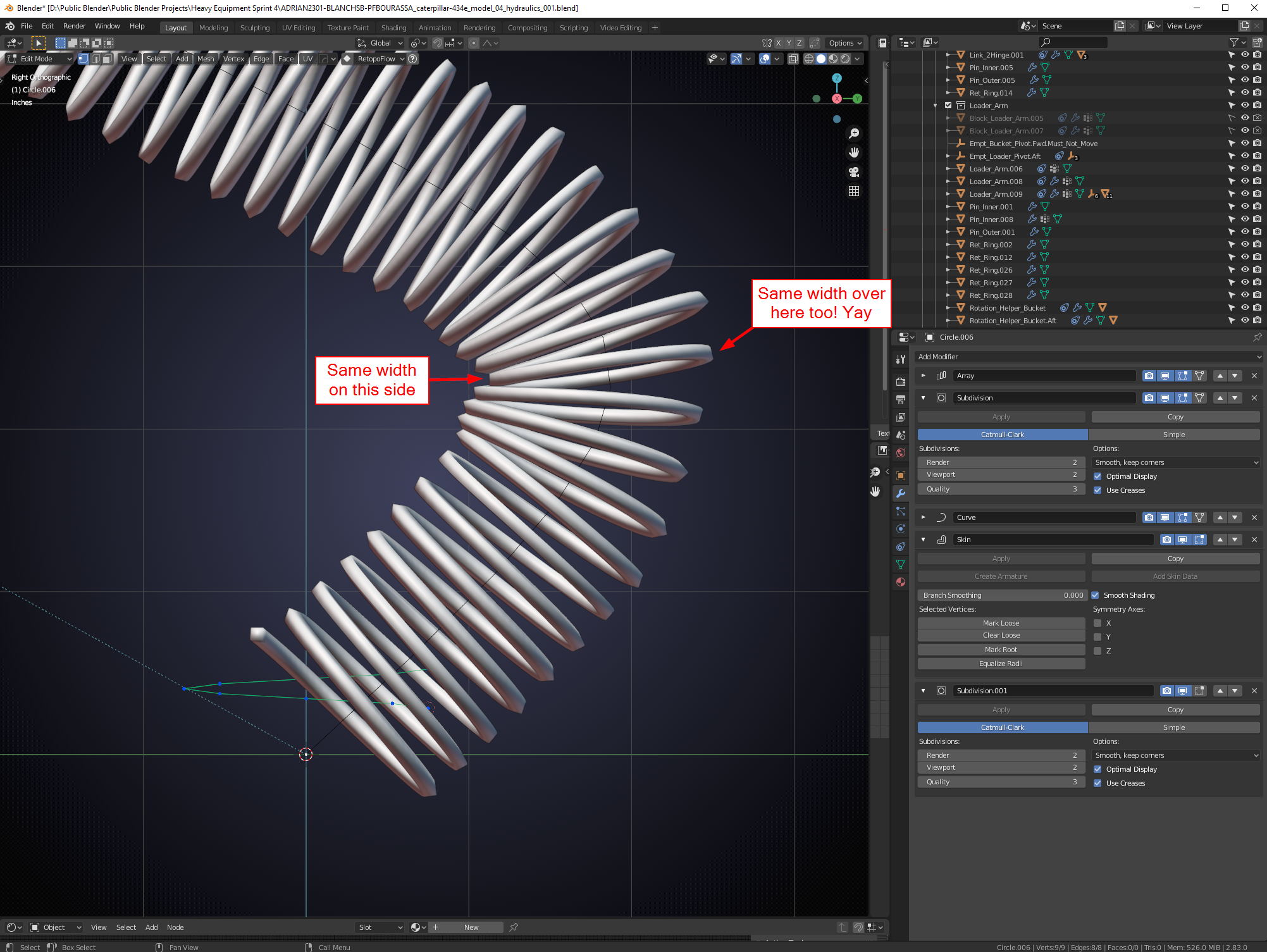

Just had to go into edit mode and scale down the skin (using CTRL+A) by like 100 times and I finally got what I was looking for: A spring that arrays and follows a curve without deforming terribly: I took things to an extreme here below

This is the curve I was trying to actually get my results on:

[spikeyxxx]

Great, thanks a lot Shawn!

I haven’t run into this problem yet, but this is an excellent solution!

It’s clear that the spiral needs to get thickness after it’s Curve deformation, but I don’t think I would have gotten the idea to not start with a Curve, but with a Mesh (Circle), so that you can use a Skin Modifier after the Curve Modifier!

It sounds so simple and logical when you’ve seen it, but coming up with this method is definitely not straight forward…

[Shawn Blanch]

Yeah I am amazed at what modifier stack is capable of now and the skin modifier has a super power I never was aware of……….. and now everyone can make a slinky without worrying about squishing deformations!

I think this will help with making any kinds of chain link,rope, spring that needs to bend sharper corners. I can’t say I was clever enough to come up with this on my own but I’m glad doing some research lead to fruitful results. I had to get creative with The Google though haha.
